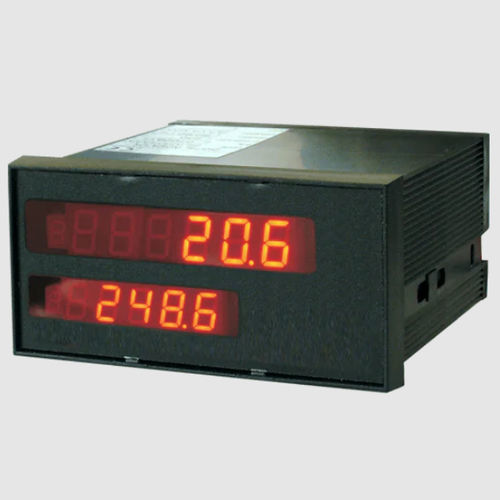

Flow indicator SLM2XH3

4-digitpaneltotalizer

For 4÷20 mA or 0÷10V transmitters 24VDC power supply for the transmitters 2 independent displays for the totalizer (6 digits) and for the flow rate (4 digits) Maximum scale totalizer 999999 Frontal reset (can be disabled) and remote From panel 96×48 mm (depth 100 mm) Description SLM2XH3 connected to a flow transmitter (4-20mA or other scale defined in the order), allows the remotely volume totalization and the instantaneous flow rate displaying. The SLM2XH3 configuration is via a removable keyboard (optional). The maximum input range is ± 0.1 … 40 mA (default 4÷20mA) or ± 0.1 … 40V. The display shows the of total flow values in a range from 0 to 999999.
