Centrifugal pump ZX-HY

oilgasolinediesel

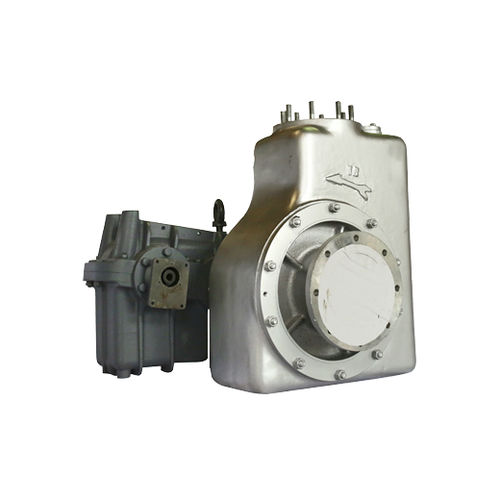

ZX series self-priming centrifugal pump is mainly composed of the gearbox for speed increasing, pump body, impeller, inducer, mechanical seal, etc. ZX series pumps are suitable for conveying gasoline, kerosene, diesel oil and other light oil at -40°C~80°C as well as medium with similar performance. It is specially used for refueling truck and tanker, and can be used as the oil transfer equipment for the airport, oil depot and gas station. Feature ZX series pumps are directly connected to the gearbox for speed increasing, and the pump itself has no shaft, nor bearing. The pumps are compact, lightweight and highly reliable. The overflow parts are made of stainless steel or high-strength aluminum alloy in the aerospace industry, which greatly reduce the weight of pumps and ensure clean and safe media. It is easy to maintain the pumps, and it is only necessary to remove the inlet pipe to replace the mechanical seal, impeller and inducer, etc. System composition The pump set consists of the gearbox for speed increasing, pump body, impeller, inducer and mechanical seal, etc. Use The pump is suitable for conveying gasoline, kerosene, diesel oil and other light oil at -40°C~80°C as well as non-corrosive liquid similar to water. It is specially used for refueling trucks and tankers, and can be used as the oil transfer equipment for airports, oil depots and gas stations. It can also be equipped with a control system to achieve constant pressure output, constant flow output, automatic overspeed protection, emergency shutdown and other functions.
