Centrifugal compressor EB series
airmotorlessstationary

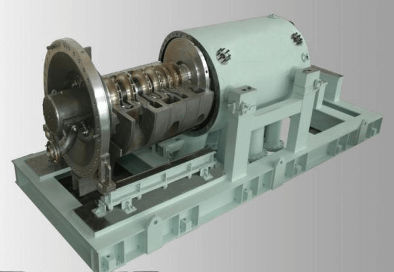

Centrifugal compressor - EB series - Shaanxi Blower (Group) Co., Ltd. - air / motorless / stationary
Centrifugal compressor - EB series - Shaanxi Blower (Group) Co., Ltd. - air / motorless / stationary
Centrifugal compressor - EB series - Shaanxi Blower (Group) Co., Ltd. - air / motorless / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Type
air
Power source
motorless
Portability
stationary
Application domain
petrochemical
Applications
suction
Other characteristics
multi-stage, horizontal
Flow

Min.: 10 m³/min
(353.15 ft³/min)

Max.: 3,000 m³/min
(105,944 ft³/min)

Description

EB series of centrifugal compressors are suitable for the applications of high pressure, toxic, flammable and explosive medium transportation in petrochemical industry generally. Structure of the compressor is of integral barrel type, single-suction, multi-stage, high-speed and double supports. Models include 13 types. Flow range: 10~3000m3/min. Exhaust pressure: up to 25MPa. Impeller diameter: 250mm~1320mm. Stages: 1~9 stages. Serialization design, efficient three-dimensional impellers and proper matched model stages realize pressure ratio requirements and high-efficient operation. Rotor and inner stator could be pulled out directly for maintenance without removing the pipeline. Intake and exhaust air ducts could be flexibly designed according to actual situations. Inner cylinder is of horizontal splitting structure for easy maintenance. EB compressors are designed with mature and reliable modelling stages and advanced pneumatic calculation program, which has reached the international advanced technology level by many fields operation verification.
