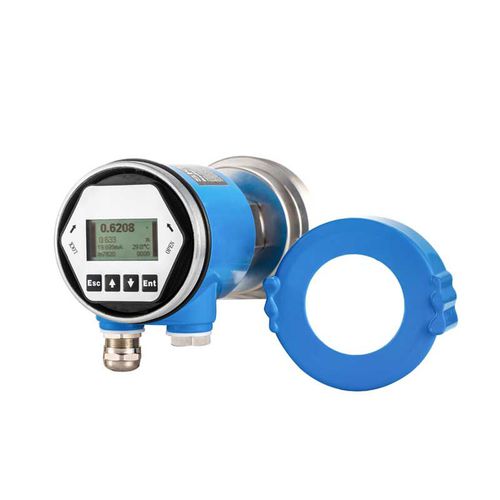

Radar level transmitter SK-R800

for liquidsHARTPROFIBUS

Your benefit FM continuous wave (FMCW) technology. Suitable for measuring liquid level and solid. Strong penetration, suitable for high steam and high dust applications. The precision of 80GHz Radar Level Transmitter series is up to 1mm. The setup is simple and the measurement can be achieved at least by setting two parameters. Working principle Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference. Radar level meter, as a new industrial level measuring instrument, has the characteristics of high temperature resistance, high pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust and other effects. Applications Radar Level Transmitter can not only measure liquid level, but also measure solid level (including powder). 80GHz Radar Level TransmitterIt has good applications in different tanks: process tanks, reaction tanks, static tanks, dome tanks, flat-top tanks, spherical tanks, horizontal tanks, guide tubes, bypass tubes, agitator tanks
