Fiber dosing dispenser

beltautomatichigh-precision

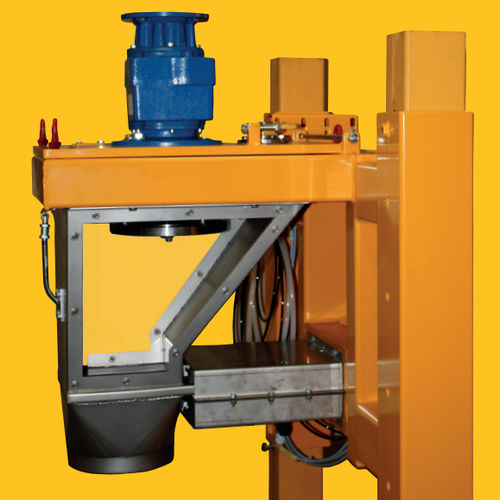

SYNTHETIC FIBRES The system consists of a cutting/proportioning unit including cutting head, motor, control system and components. It is fully automatic and proportions directly into the mixer, skip hoists, intermediate hopper or onto the belt conveyor. No manual handling. The fibres are delivered in bundles and in cardboard boxes. The SKAKO proportioning unit replaces the manual addition ensuring: accurate proportioning homogeneous distribution during addition no lumps considerable purchase savings integration with existing control system easy integration into existing plant The compact unit consists of cutting head, outlet funnel with pneumatic sliding gate to prevent dust and moisture from penetrating the unit, and monitoring indicators of the rope in case of thread rupture or thread stop. The fibre rope is supplied in a pure and dry quality from an external magazine (not included). The fibre proportioning is a time proportioning. TECHNICAL DATA Cutting length: 12 mm is standard. Lengths of 24, 32 and 54 mm can be quoted. 6 mm can be quoted at an additional price. Proportioning capacity: Approx. 2.6 m/sec corresponding to 50 g/sec. Repeating accuracy: +/- 2 % Reservations: The data stated depend on fibre type. Not all types of fibre can be used. SKAKO is to receive fibre sample for testing purpose.
