Oil filling machine
semi-automaticbottlefor tubes

Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes
Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes
Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes - image - 2
Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes - image - 3
Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes - image - 4
Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes - image - 5
Oil filling machine - Shandong Dongtai Machinery Manufacturing Co., Ltd. - semi-automatic / bottle / for tubes - image - 6
Add to favorites
Compare this product


Characteristics

Operational mode
semi-automatic
Container type
bottle, for tubes
Product applications
wine, for oil
Domain
for the chemical industry, medical
Other characteristics
compact, servo-driven
Throughput

Min.: 40 p/min

Max.: 50 p/min

Volume

Min.: 3 ml
(0.1 US fl oz)

Max.: 20 ml
(0.7 US fl oz)

Machine length

1,200 mm
(47 in)

Machine width

900 mm
(35 in)

Machine height

1,150 mm
(45 in)

Machine weight

120 kg
(264.55 lb)

Description

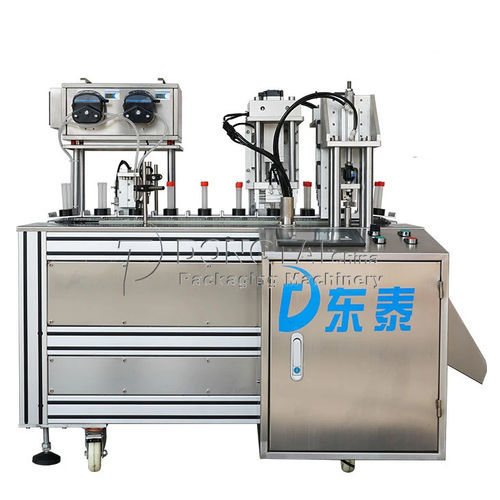

The reagent filling machine is suitable for liquid filling and sealing of caps. It is mainly used for quantitative packaging and automatic sealing equipment for diagnostic reagents, liquid sampling tubes and other tubular containers. The transmission and capping mechanism is driven by a servo motor, which makes the filling and capping more stable and reliable. Double-head filling and double-lid sealing greatly improve production efficiency. The structure is compact, the floor space is small, and the movement is convenient. Place the container manually. Servo-driven, accurate positioning, high efficiency, stability, and no damage to the cap. The liquid filling machine is double-head filling and double-head sealing, which greatly improves the efficiency. The reagent filling machine has a dual touch screen structure, modular design, and more convenient and quickerman-machine dialogue. Alcohol filling machine peristaltic pump filling, high cleanliness, in line with medical and health standards The Alcohol filling machine is our company's traditional filling and capping equipment series, which is suitable for filling and capping various round, hand-washing gel liquid filling machines and special-shaped bottles and small bottles. It is mainly suitable for filling various diagnostic reagents, 10ml eye drop filling machine injections, disinfectants, oral liquids and syrups, wine, essential oils and various medical liquids.
