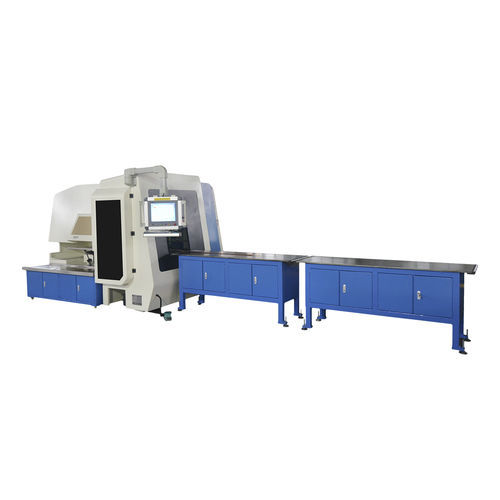

Automatic punching machine GJCNC-BP-30

hydraulicbusbarcutting

GJCNC-BP-30 is a professional equipment designed to process busbar efficiently and accurately. With those processing dies in the tool library, this equipment could process busbar by punching (round hole, oblong hole etc), embossing, shearing, grooving, cutting filleted corner and so on. The finished workpiece will be delivered by the conveyor. This equipment can match with CNC bending machine and form busbar processing production line. The transport system adopt master-slave clamp structure with automatic clamp switch technology, the maximun stroke of main clamp is 1000mm, when finish the whole process the machine will use flip table to slide the workpiece out, these structures make it highly effective and precise especially for long busbar. The processing system include the tool library and the hydraulic work station. The tool library could contain 4 punching dies and 1 shearing die, and the bantam library ensure the process more efficient when the dies changes frequently, and a lot more simple and convenient when you need to change or replace the punchine dies. The hydraulic work station adopt new technology such like differential pressure system and energy storage device, these new device will make the equipment more efficiency and reduce the energy loss during processing. As the control system we have GJ3D program which is a special aided design software of busbar processing. Which could auto program machine code, calculate every date in processing, and show you the simulation of the whole process which will present the change of busbar step by step clearly.
