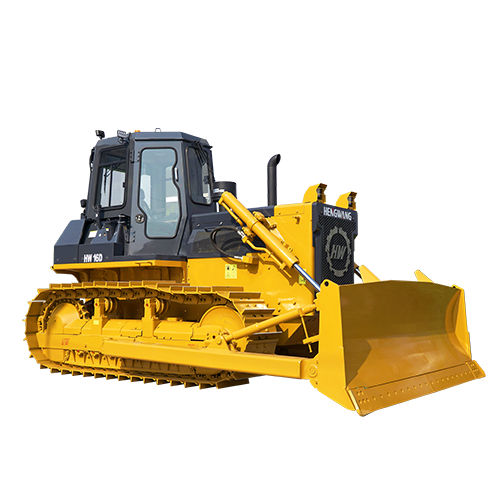

Tracked bulldozer HW-16DE

landfillmining and quarryingfor construction

The HW16D series bulldozer, is a newly developed hydraulic transmission bulldozer by Hengwang Group, with high technological content, reasonable design, and strong power. It is capable of operating in even the most challenging work environments. Power System: Equipped with a Weichai WD10G178E25 engine, boasting a rated power of up to 120KW. With high combustion efficiency, it offers quicker dynamic response. Transmission System: The machine is equipped with a planetary power shift transmission, forced lubrication gearbox, and a hydraulic power steering system, making the operation more lightweight. It ensures efficient power transmission and production productivity. Cooling System: Utilizing a closed system, it enhances the evaporation temperature of cooling water and heat dissipation efficiency. With an enlarged radiator, the cooling effect reaches optimal levels, ensuring normal operation under heavy load. Hydraulic System: Incorporating a mainstream 14MPA working hydraulic system with stable overload protection function, it significantly reduces the failure rate of hydraulic components, providing improved stability and reliability. The main frame of the all-box structure is welded with steel plates, forming a complete box structure. It is integrated with the rear axle box and possesses high load-bearing impact resistance and bending-torsion capacity. High-quality weld seams ensure the main frame's durability throughout its lifecycle. Eight-character beam swing, balanced beam suspension structure connects the frame and walking system, effectively enhancing the stability of the bulldozer during complex working conditions.
