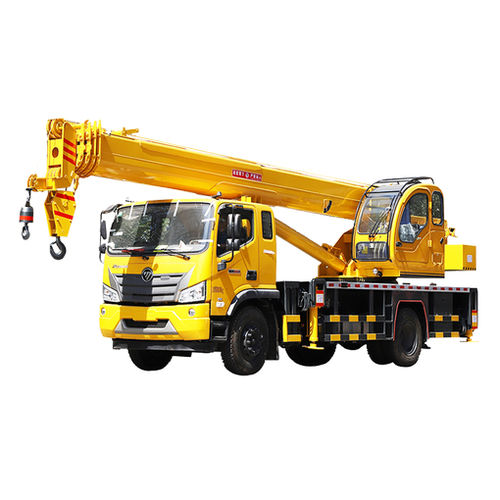

Truck-mounted crane HWFT16T

hydraulic

Automobile crane is a type of crane mounted on a regular or specially designed truck chassis, with separate driver's cabin and crane operator's cabin. The chassis performance of an automobile crane is equivalent to that of a cargo truck with the same total weight, meeting the technical requirements for road vehicles, allowing it to travel smoothly on various types of roads. This type of crane typically has two control cabins, one for operating from the upper part of the crane and the other for operating from the lower part. Stabilizing outriggers are extended during operation to ensure stability. Main Parameters: Hydraulic system - Three-pump confluence system Rotation speed - 0-3rap Engine model - Weichai National VI Engine Engine power - 140KW Tire model - 10.00-R20 Reducer model - Planetary Gear Reducer Slewing support - External teeth: 1.5 m Main frame structure - Large six-hole Steering mode - Hydraulic power assist Brake type - Air brake Transmission - Fast 8-speed gearbox Weight - 18000kg Driver's cabin - XCMG driver's cabin Emission standard - National VI Wheelbase - 4500
