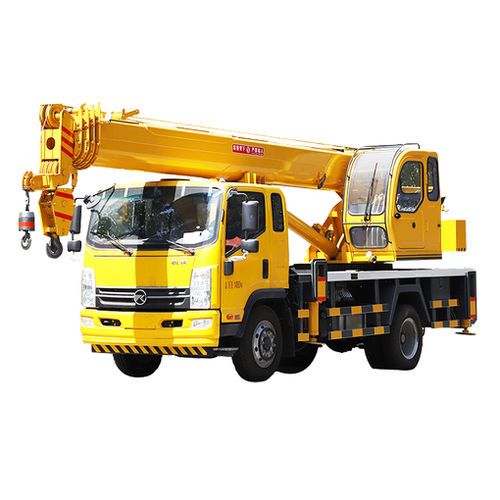

Truck-mounted crane HKWM10T

boomfor constructionfor the automotive industry

Automobile crane is a type of crane mounted on the chassis of a regular or specially designed vehicle, with separate compartments for driving and crane operation. The chassis performance of an automobile crane is equivalent to that of a cargo vehicle with the same overall weight, meeting the technical requirements for road vehicles, and therefore can travel smoothly on various types of roads. This type of crane typically has two control rooms, one for operating the crane from above and another for controlling it from below. Stabilizing legs must be extended during operation to ensure stability. Main Parameters: Lifting speed - Auxiliary Hook: 52 (116)m/min; Main Hook: 102m/min Rotation speed - 0-3rpm Engine model - Wp2.3NQ130E61 Engine power - 96KW (131HP) Tire model - 825-R16 Travel speed - 80Km/h Reducer model - Planetary Reducer Slewing support - 1.3 m external gear Boom size - 532*402 Central slewing - Big Five-hole Steering form - Hydraulic power steering Brake form - Air brake Gearbox - 1046HF Rear offset top - Standard configuration Operating weight - 11200kg Driver's cab - XCMG driver's cab Emission standard - National VI Wheelbase - 3600mm Main hoist winch - Inclined shaft winch (large) Auxiliary hoist winch - Inclined shaft winch (large)
