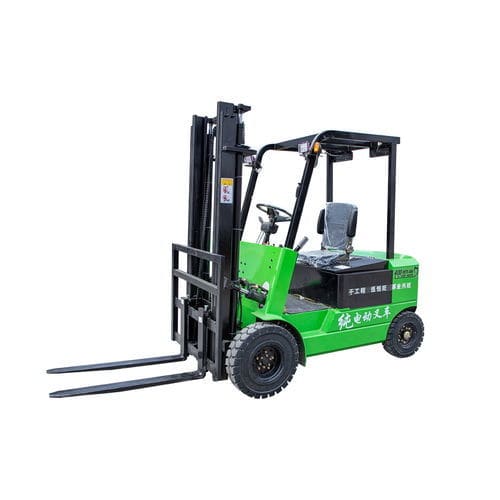

Electric forklift HWC-1.5T

ride-onindustrialhandling

Forklifts are industrial handling vehicles designed for the loading, unloading, stacking, and short-distance transportation of unitized palletized goods. Referred to as industrial vehicles by the International Organization for Standardization ISO/TC110, forklifts are commonly used for the transportation of large items in warehouses. They are typically powered by either internal combustion engines or batteries. The technical parameters of a forklift are used to indicate its structural features and operational performance. The key technical parameters include rated lifting capacity, load center distance, maximum lifting height, mast tilt angle, maximum travel speed, minimum turning radius, minimum ground clearance, as well as wheelbase and track width. Main parameters： Battery weight - 5pieces Battery capacity - 220model Voltage - 60V Charging voltage - 220V Charging tim 8 hours Full battery operating time - 4-6 hours Maximum travel speed - 20-30Km/h Maximum lifting speed - 11m Maximum gradient with full load - 20° Turning radius - 90° Dimensions - 2200*1200*2100 Front tire model - 650-10 solid Rear tire model - 500-8 solid Fork length - 1070㎜ Travel motor - 4KW Lifting motor - 2.2KW/3KW Motor type - Partial Immersion/Full Immersion Optional services and configurations Lifting; lateral movement; three-stage mast; central cylinder; dry battery; lithium battery; clamp; registration
