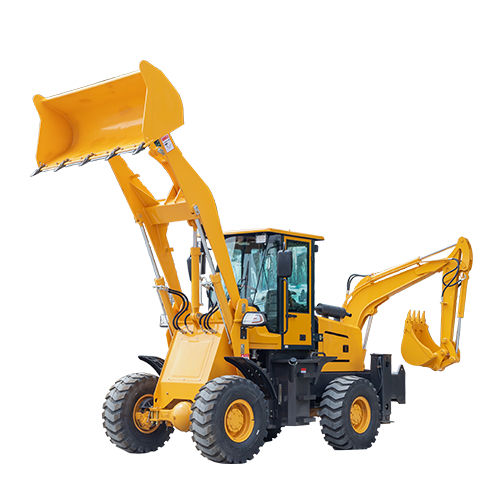

Articulated backhoe loader HW15-26

compact

The excavator loader, colloquially known as 'busy at both ends,' is a highly technical product that possesses both digging and loading functionalities. Compared to single-function equipment, the excavator loader has a more compact structure. Its wheeled chassis allows for easy movement around construction sites and even on-road travel. Moreover, it can perform loading and excavating tasks simultaneously, saving a significant amount of labor, time, and financial resources. Applicable Conditions: Equipped with various attachments, it can perform a wide range of tasks such as digging, loading, breaking road surfaces, leveling sites, trenching, laying pipes, and more. It is a multifunctional machine widely used in agricultural water conservancy, construction, municipal sanitation, highway maintenance, telecommunications, and other engineering projects. Dimensions (mm) - 5800*1850*2750 Wheelbase (mm) - 2315 Track Width (mm) - 1500 Minimum Ground Clearance (mm) - 220 System Pressure (MPa) - 16 Total Weight (Kg) - 4800 Maximum Speed (Km/h) - 26 Maximum Climbing Ability (°) - 25 Minimum Turning Radius (mm) - 4000 Maximum Digging Depth (mm) - 2700 Digging Unloading Height (mm) - 2200 Maximum Digging Radius (mm) - 4600 Bucket Width (mm) - 600 Bucket Capacity (m³) - 0.2 Maximum Digging Height (mm) - 4200 Maximum Digging Force (KN) - 28 Excavator Rotation Angle (°) - 180 Maximum Unloading Height (mm) - 3300 Maximum Unloading Distance (mm) - 850 Loader Bucket Capacity (m³) - 0.7 Maximum Lifting Height of Loader (mm) - 4200 Maximum Breakout Force (KN): 42 - 36 Time for Shovel Action (S) - 12
