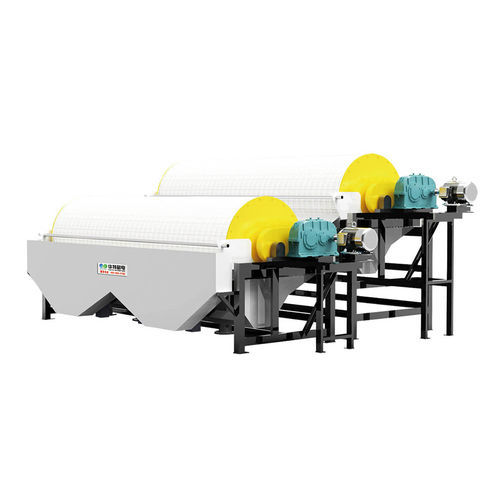

Magnetic separator TCTJ

magnetic drumwetsurface

The wet magnetic separator is designed for the magnetic minerals rinsing and purification. According to the technological requirement, the concentrate can be rinsed, thickened and deslimed for improving its grade. Separating and desliming for overflow product of classification after first grinding. Pulp thickening before the second grinding and filtering. The magnetic mineral’s desliming before feeding into the fine screen and reverse flotation; the final concentration of magnetite. Working principle After the pulp is fed into the feed box,it can be fed into separation area directly.The magnetic mineral is absorbed on the surface of the magnetic drum after magnetization and transferred to mineral unloading area forehead by the rotative separation drum.Under the washing water pushing ,it can deslime the tailings and the mineral is discharged into the concentrate box with the washing water or scraper ,it becomes the concentrate.Meanwhile ,the nonmagnetic mineral in pulp flows into the the bottom box with the pulp .Due to the difference of the particles size and the density in the bottom box,it can make the heavy and coarse particles sink to the bottom and out from the tailing mouth ,then this is the coarse tailing , the light slime can be discharged by the overflow devices. Patent technological innovation point 1 Concentrated magnetic separator is equipped with Multipoint feeding flange in the feeder box,open top design can achieve side and top feed, there is overflow weir in the feeding box, which makes the materials in tank are uniform in the direction of drum length.
