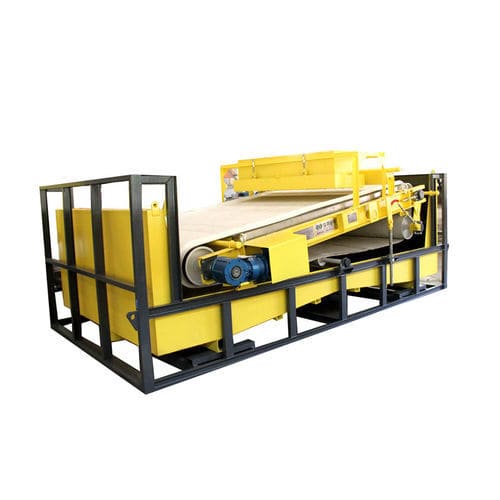

Magnetic separator SGB

gravitybeltwet

To remove the iron impurities in wet process and purify the non-metallic minerals, such as quartz, sodium or potassium feldspar. In addition, with high magnetic intensity, it has a very good effect in separating the weakly magnetic minerals, like hematite, specularite, limonite, siderite, manganese ore, etc. Outstanding Advantages 1. High magnetic intensity. The magnetic system is made up of the rare earth NdFeB magnets with high performance. It has a very wide poly pole face, lots of magnetic poles. It’s with a very high magnetic induction ability and a very high magnetic gradient. The magnetic intensity in some part can reach 17000Gs. 2. Large magnetic panel with a wide magnetic and gravity separation area. At present, the largest width for the panel is 2500mm, and its largest length is 3000mm. 3. Feed evenly. Feed uniformly and evenly with double stories orifice panel. And the mineral layer is thin. 4. A very good iron-removing efficiency. There’re various belt specially designed to remove the iron for the customer’s choice. Made by the compound materials with high quality, the belt can serve for a long lifetime and remove the iron obviously. 5. Energy-saving and water-saving. Driven by one motor with small frequency, it’s very energy-saving. With the special controllable design of water system, It’s very water-saving.
