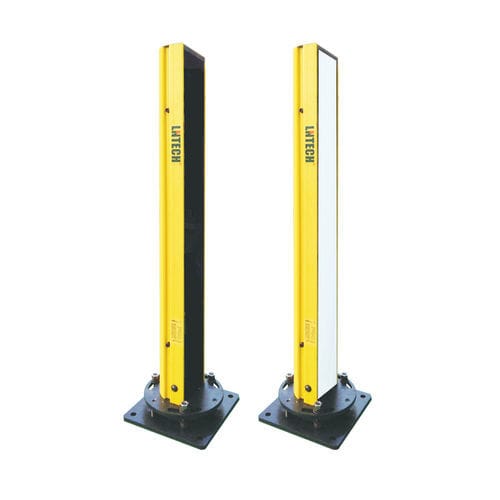

Safety light curtain SQL seriesmultibeamthrough-beam
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Operating range
Max.: 40,000 mm
(1,574.8 in)Min.: 0 mm
(0 in)
Description
product details
Characteristics:
Long protection distance
Provide 1,2 or 3 sides protection area
Convenient to mount and do wiring, kinds of models for wide application
Perfect self-checking function
Good anti-inference to the surrounding lights and electromagnetic
Good anti-vibration,water-proof and dust-proof performance
NPN×2/PNP×2 output, controller with double relay contacts output
Specially designed bracket,easy to adjust direction,height and align light
Parameters:
Protective ange - 1side
Protective height - Light axis pitch×(beams-1)
Light axis pitch - 40mm, 80mm, 160mm, 320mm
Power supply - DC12V-24V
Working current - <200mA
Loading current - <200mA
Response time - 99%
MTTFd - 120a
Sealing level - IP65
Operation temp. - –10°C ~ +55°C
Humidity - 20°C, RH ≤85%
Immunity to light - 10000Lux (Angle of incidence ≥5°)
