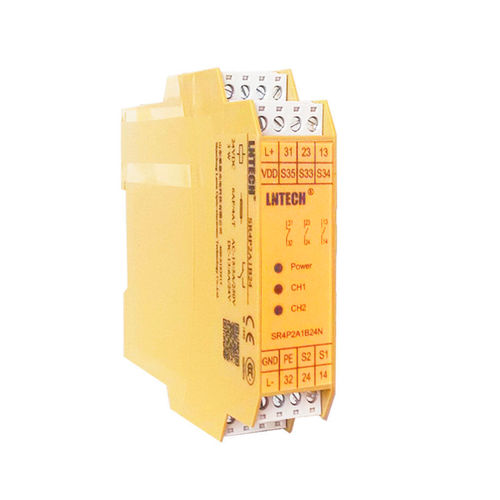

Safety protection relay SR4P2A1B24
powerlevelDC

Safety protection relay - SR4P2A1B24 - Shandong laien optic-electronic technology co.,ltd. - power / level / DC

Add to favorites

Compare this product

Characteristics

Measured/monitored value: power, safety, level
Network: DC
Norms: IEC

Description

product details Monitoring E-stop and safety gate Features: ◆Compact structure ◆Can detect input contacts’ short ◆Can select the manual&automatic reset ◆Self-monitoring redundancy circuit ◆LED indicators to show the running and faults state ◆With removable terminals Parameters: Model - SR4P2A1B24 Reset mode - Manual or Automatic Power supply - DC/AC24V Power consumption - 3W Output contacts - 2N/O,1N/C Switch capacity - AC-15,5A/250V; DC-13,6A/24V Release time - 99% MTTFd - 110a PFHd - 2.5×10-8 Sealing level - IP50 Operation Temp. - -10 ~＋55℃ Storage Temp. - -40 ~＋85℃ Max.cable size - Max. 2.5mm2 Max.cable length - Max. 100m Dimension - 96(L)×22.5(W)×116(H)mm Standards - EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, IEC/EN 60204-1, EN ISO 13849-1
