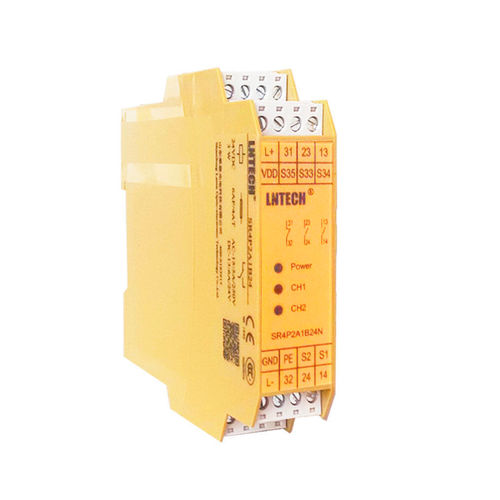

Safety protection relay SR4P2A1B22powerlevelDC
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- power, safety, level
- Network
- DC
- Norms
- IEC
- Other characteristics
- compact
Description
product details
Monitoring E-stop and safety gate
Features:
Compact structure
Can detect input contacts’ short
Can select the manual&automatic reset
Self-monitoring redundancy circuit
LED indicators to show the running and faults state
With removable terminals
Parameters:
Model - SR4P2A1B22
Reset mode - Manual or Automatic
Power supply - DC/AC85-264V
Power consumption - 3W
Output contacts - 2N/O,1N/C
Switch capacity - AC-15,5A/250V; DC-13,6A/24V
Release time - 99%
MTTFd - 60a
PFHd - 4.7×10-8
Sealing level - IP50
Operation Temp. - -10 ~＋55℃
Storage Temp. - -40 ~＋85℃
Max.cable size - Max. 2.5mm2
Max.cable length - Max. 100m
Dimension - 96(L)×22.5(W)×116(H)mm
Standards - EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, IEC/EN 60204-1, EN ISO 13849-1
