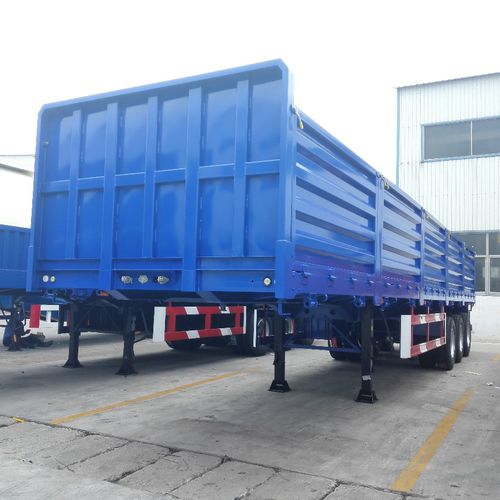

Container semi-trailer

3-axletowed

Tare weight 6500kg-7500kg Size 12500mm*2500mm*2700mm Payload 30T-45T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45 (T700), welded by automatic submerged-Arc processes. Top flange 14mm,widt h140mm;Middle Flange 8mm height 500mm;bottom flangel6mm,width 140m m Side beam 16# channel steel(Q235) Cross member 10# channel steel(Q235) Floor 3mm checkered plate Side wall Height 1000mm Thickness 1.5mm Front board Height 1200mm Side protection and bumper Standard or according to your requirements Axle 3 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/16T Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Twist lock 12pcs Vehicle application Bulk cargo transport or container transport Braking system WABCO RE6 relay valve ;T30/30+ T30 spring brake chamber;40L air tank ABS Optional Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side light, two rear light Certification CCC/ISO/BV/TUV/SGS
