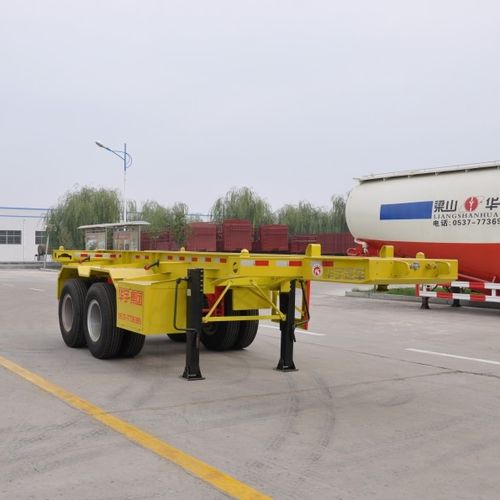

Container semi-trailer

skeletal2-axletowed

20ft 2axle skeleton semi trailer DIMENSIONS Tare weight 4700kg Size 6500mm-7200mm*2480mm-2500mm*1500mm Payload 30T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45, welded by automatic submerged-Arc processes. Top flange 14mm,width140m m;Middle Flange 8mm height 500mm:bottom flangel6mm,width 140m m Side beam No Cross member 10# channel steel(Q235) or W shape cross member Floor No Side protection and bumper Standard or according to your requirements Axle 2 axle FUWA brand 13T Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Kingpin JOST or other brand r /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Twist lock 4pcs Vehicle application 20ft container transport Braking system WABCO RE6 relay valve ;130/30 spring brake chamber,40L air tanks ABS Optional Lights LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,lcoat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one crank, one shaft head wrench, four side light, two rear light
