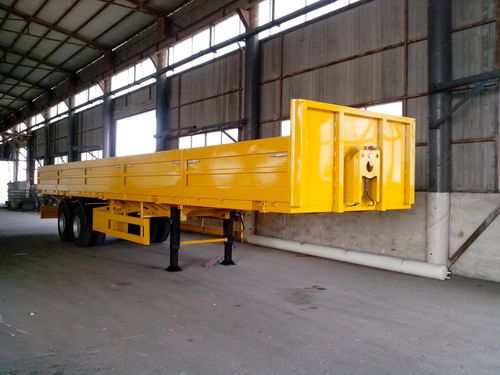

2 axle side wall semi trailer
Tare weight
6500kg-7500kg
Size
12200mm-13500mm*2500mm*3100mm-3000mm
Payload
30T-45T
Main beam
Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45 (T700), welded by automatic submerged-Arc processes. Top flange 14mm,widt h140mm;Middle Flange 8mm height 500mm;bottom flangel6mm,width 140m m
Side beam
16# channel steel(Q235) or bending parts
Cross member
10# channel steel(Q235) or W shape cross member
Floor
1.5mm/2mm/3mm checkered plate or smooth plate
Side wall
Height 600mm-1200mm Thickness 1.2mm/1.5mm/2mm
Front board
Height 1200mm-1500mm
Side protection and bumper
Standard or according to your requirements
Axle
2 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/16T
Suspension
Mechanical suspension or air suspension(brand optional)
Leaf spring
Leaf spring 10pcs*90*13mm or air bag
Tire
11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional
Wheel rim
8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice
Kingpin
JOST or other brand 2" /3.5" bolt-in king pin
Landing gear
JOST or other brand two-speed, landing gear 28T
Twist lock
4/8/12pcs
Vehicle application
Bulk cargo transport or container transport
Braking system
WABCO RE6 relay valve ;130/30 +T30 spring brake chamber,40L air tank
ABS
Optional
Light
LED 8 side lights and 2 rear lights 2 width lamp
Painting
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories
One standard tool box, one spare tire carrier, one crank, one shaft head wrenc h, four side light, two rear light
Certification
CCC/ISO/BV/TUV/SGS
