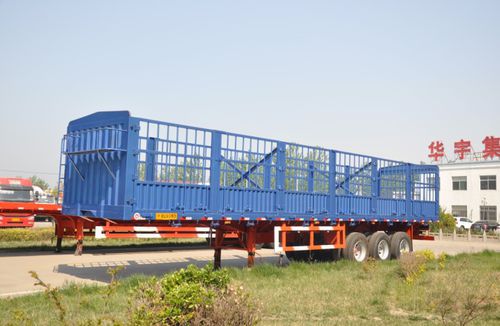

Container semi-trailer

towedfor cargo

Stake semi trailer Tare weight 7500kg-8500kg Size 11000mm-15000mm*2500mm*2500mm-3800mm Payload 30T-60T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45 (1700), welded by automatic submerged-Arc processes. Top flange 14mm,widt h140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140m m Side beam 16* channel steel(Q235) or bending parts Cross member 10* channel steel(Q235) or W shape cross member Floor 1.5mm/2mm/3mm checkered plate or smooth plate Side wall Height 600mm-800mm Thickness 1.2mm/1.5mm/2mm Fence 400mm-1600mm 4*4cm square tube Front board Height 1200mm-2600mm Side protection and bumper Standard or according to your requirements Axle 2/3 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/151716T Suspension Mechanical suspension or air suspension(brand optional) Leaf spring Leaf spring 10pcs*90*13mm or air bag Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim S.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Twist lock 4/8/12pcs Vehicle application Sulk cargo transport or container transport Braking system WABCO RE6 relay valve ;130/30 + T30 spring brake chamber;40L air tank ABS Optional Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrenc h, four side light, two rear light
