2-axle semi-trailer

towed

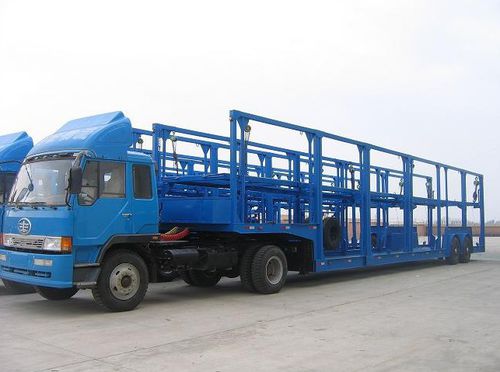

CAR CARRIER SEMI TRAILER Tare weight 3500kg Size 14900mm*3000mm*3720mm Payload 30T Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q3 45, welded by automatic submerged-Arc processes. Top flange 14mm,width140 mm;Middle Flange 6mm height 300mm;bottom flangel6mm,width 140m m Side beam 16* channel steel(Q235) Cross member 10* channel steel(Q235) Floor 3mm checkered plate Cylinder 6pcs Axle 2 axle FUWA/BPW/SAF/L1 brand or China local brand 13T/15T/16T Suspension American type suspension Leaf spring 10pcs*13mm*90mm Tire 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional Wheel rim 3.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon choice Kingpin JOST or other brand 2" /3.5" bolt-in king pin Landing gear JOST or other brand two-speed, landing gear 28T Twist lock No Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber,40L air tanks ABS No Light LED 8 side lights and 2 rear lights 2 width lamp Painting Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2coats of final paint Accessories One standard tool box, one spare tire carrier, one crank, one shaft head wrenc h, four side light, two rear light
