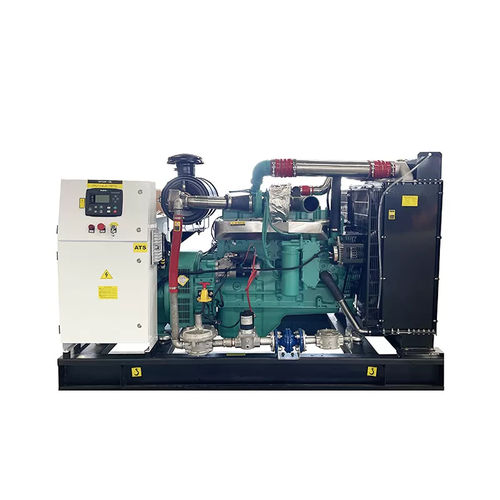

Natural gas generator set PL seriesthree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- natural gas
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz, 60 Hz
- Cooling system
- water-cooled
- Power in kVA
187.5 kVA
(254.93 hp)- Rated capacity
150 kW
(203.9 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Length
2,450 mm, 2,900 mm
(96 in, 114 in)- Width
1,000 mm, 1,100 mm
(39 in, 43 in)- Height
1,650 mm
(65 in)- Weight
1,550 kg, 1,800 kg
(3,417.17 lb, 3,968.32 lb)
Description
Genset -
Genset Model - PLC-150GF - PLR-150GF
Rated Current (A) - 270 - 270
Manufacturer - Pulita Energy
Gas Engine -
Main Engine-Body Make - Cummins - Ricardo
Gas Engine Model - PCTA9L-NG - HT12ZD-NG
Type - Four Stroke, Water Cooling, Spare Ignition, 24V DC Starting
Displacement (L) - 8.9 - 10
Bore× Stock (mm) - 114*135 - 126*155
Air Intake Way - Turbocharged - Turbocharged
Fuel consumption(m³/Kw·h) - 0.3
Alternator -
Brand/Model - Faraday - Faraday
FD3F-4 - FD3F-4
Excitation Method - Self-excited, Brushless, AVR
Phase/Connection - 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ)
Protection Level/Insulation Class - IP23/H
Control System - The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller.
Options - Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options.
