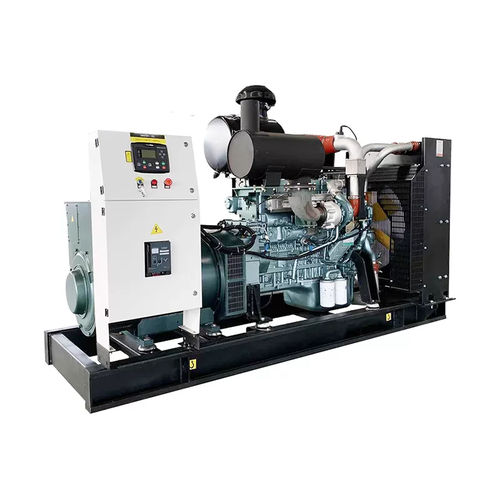

Natural gas generator set PL seriesthree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- natural gas
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz, 60 Hz
- Cooling system
- water-cooled
- Power in kVA
312.5 kVA
(424.88 hp)- Rated capacity
250 kW
(339.9 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Length
3,110 mm, 3,850 mm
(122 in, 152 in)- Width
1,134 mm, 1,230 mm
(45 in, 48 in)- Height
1,850 mm, 2,170 mm
(73 in, 85 in)- Weight
2,275 kg, 3,300 kg
(5,015.52 lb, 7,275.25 lb)
Description
Genset -
Genset Model - PLC-250GF - PLW-250GF
Rated Current (A) - 450 - 450
Manufacturer - Pulita Energy
Gas Engine -
Main Engine-Body Make - Cummins - Weichai
Gas Engine Model - PCTA19L-NG - WP13D317E300NG
Type - Four Stroke, Water Cooling, Spare Ignition, 24V DC Starting
Displacement (L) - 19 - 12.5
Bore× Stock (mm) - 159*159 - 127*165
Air Intake Way - Turbocharged - Turbocharged
Fuel consumption(m³/Kw·h) - 0.3
Alternator -
Brand/Model - Faraday - Faraday
FD4M-4 - FD4M-4
Excitation Method - Self-excited, Brushless, AVR
Phase/Connection - 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ)
Protection Level/Insulation Class - IP23/H
Control System - The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller.
Options - Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options.
