- Natural gas generator set
- Shandong Pulita New Energy Technology Co., Ltd.

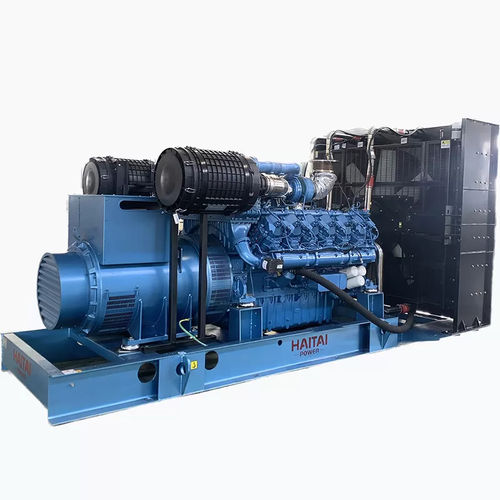

Natural gas generator set PL seriesthree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- natural gas
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz, 60 Hz
- Cooling system
- water-cooled
- Power in kVA
625 kVA
(849.76 hp)- Rated capacity
500 kW
(679.8 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Length
4,500 mm, 4,600 mm
(177 in, 181 in)- Width
2,000 mm
(79 in)- Height
2,200 mm
(87 in)- Weight
5,600 kg, 5,700 kg
(12,345.89 lb, 12,566.35 lb)
Description
Genset -
Genset Model - PLC-500GF - PLB-500GF
Rated Current (A) - 900 - 900
Manufacturer - Pulita Energy
Gas Engine -
Main Engine-Body Make - Cummins - Baudouin
Gas Engine Model - PCTA38V-NG - 12M26D605E300NG
Type - Four Stroke, Water Cooling, Spare Ignition, 24V DC Starting
Displacement (L) - 38 - 31.8
Bore× Stock (mm) - 159*159 - 150*185
Air Intake Way - Turbocharged - Turbocharged
Fuel consumption(m³/Kw·h) - 0.3
Alternator -
Brand/Model - Faraday - Faraday
FD5L-4 - FD5L-4
Excitation Method - Self-excited, Brushless, AVR
Phase/Connection - 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ)
Protection Level/Insulation Class - IP23/H
Control System - The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller.
Options - Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options.
