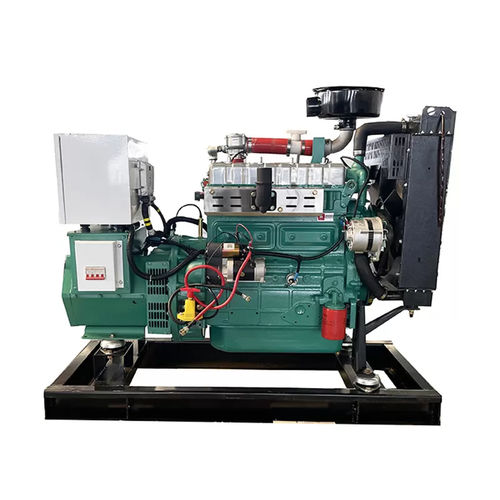

Biogas generator set PLT series
three-phasestationary50 Hz

Biogas generator set - PLT series - Shandong Pulita New Energy Technology Co., Ltd. - three-phase / stationary / 50 Hz

Add to favorites

Compare this product

Characteristics

Motor type: biogas
Phase: three-phase
Portability: stationary
Frequency: 50 Hz, 60 Hz
Cooling system: water-cooled
Power in kVA: 25 kVA
(33.99 hp)
Rated capacity: 20 kW
(27.2 hp)
Rotational speed: 1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)
Length: 1,620 mm, 1,800 mm
(64 in, 71 in)
Width: 600 mm, 900 mm
(24 in, 35 in)
Height: 1,320 mm, 1,400 mm
(52 in, 55 in)
Weight: 620 kg, 800 kg
(1,366.87 lb, 1,763.7 lb)

Description

Genset - Genset Model - PLT-20GF - PLTR-20GF Rated Current (A) - 36 - 36 Manufacturer - Pulita Energy Gas Engine - Main Engine-Body Make - Cummins - Ricardo Gas Engine Model - PC4L-BG - HT4100D Type - Four Stroke, Water Cooling, Spark Ignition, 24V DC Starting Displacement (L) - 3.9 - 4.1 Bore× Stock (mm) - 102*120 - 100*120 Air Intake Way - Natural Fuel consumption(m³/Kw·h) - 0.6m³/kw·h Alternator - Brand/Model - Faraday - Faraday FD1F - FD1F Excitation Method - Self-excited, Brushless, AVR Phase/Connection - 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ) Protection Level/Insulation Class - IP23/H Control System - The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller. Options - Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options.
