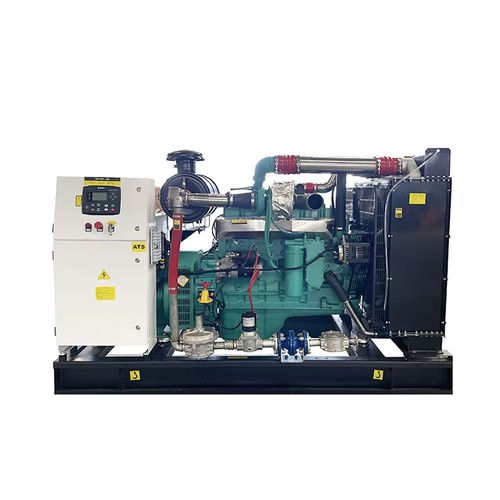

LPG generator set PLT-160GFthree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- LPG
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz, 60 Hz
- Cooling system
- water-cooled
- Power in kVA
200 kVA
(271.92 hp)- Rated capacity
160 kW
(217.5 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Length
2,450 mm, 2,900 mm
(96 in, 114 in)- Width
740 mm, 1,100 mm
(29 in, 43 in)- Height
1,650 mm
(65 in)- Weight
1,550 kg, 2,000 kg
(3,417.17 lb, 4,409.25 lb)
Description
Genset -
Genset Model - PLT-160GF - PLTR-160GF
Rated Current (A) - 288 - 288
Manufacturer - Pulita Energy
Gas Engine -
Main Engine-Body Make - Cummins - Ricardo
Gas Engine Model - PCTA9L-NG - HT615IZLD
Type - Four Stroke, Water Cooling, Spark Ignition, 24V DC Starting
Displacement (L) - 9 - 12
Bore× Stock (mm) - 114*135 - 126*155
Air Intake Way - Turbo Charged - Turbo Charged
Fuel consumption(kg/Kw·h) - 0.26kg/Kw·h
Alternator -
Brand/Model - Faraday - Faraday
FD3EM - FD3EM
Excitation Method - Self-excited, Brushless, AVR
Phase/Connection - 3 Phase 4 Wire, Y-connection, 0.8 Power Factor (Cosφ)
Protection Level/Insulation Class - IP23/H
Control System - The standard control panel is with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display by DEIF SGC420 Controller.
Options - Special requirements for Container, ATS, Synchronizing Parallel panels and CHP are available for options.
