Fiber laser welding machine HW series
high-frequencybuttpulse

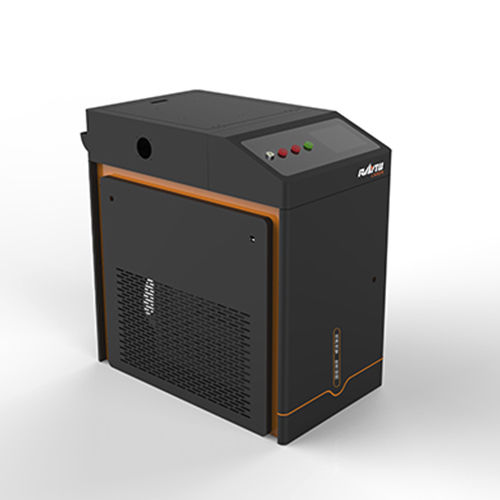

Fiber laser welding machine - HW series - Shandong Raytu Laser Technology Co., Ltd. - high-frequency / butt / pulse
Fiber laser welding machine - HW series - Shandong Raytu Laser Technology Co., Ltd. - high-frequency / butt / pulse
Add to favorites
Compare this product


Characteristics

Technique
fiber laser, high-frequency, butt, pulse, laser
Operational mode
manual
Configuration
for integration
Applications
for steel, for copper, for aluminum, for gold, for pipe, for automotive parts, steel sheet metal, for pipeline parts
Power supply
220V single phase
Other characteristics
CE, CNC, compact, single-head, programmable, integrated, water-cooled, three-phase, cost-effective, with touch screen, custom, high power, high-precision
Power

Min.: 1,000 W

Max.: 3,000 W

Weld thickness

Min.: 0.5 mm
(0 in)

Max.: 3 mm
(0.1 in)

Description

Raytu HW series handheld laser welding machine currently ranks among the top manufacturers in the world in the production and sales of laser welder equipment. With in-depth welding technology research and development and complete and mature supporting capabilities, Raytu provides suitable laser welding processing solutions for various industries. Laser welding solution is mainly aimed at welding thin-walled materials and precision parts, and can realize spot welding, butt welding, stitch welding, sealing welding, etc. Using high-energy laser pulse to heat the material in certain area and the energy of laser radiation diffuses into the material through heat conduction, then the material will be melted to form a specific molten pool. Features of RT-HW laser welding machine 1. Higher processing efficiency: compared with argon arc welding, the efficiency of fiber laser welding is increased by more than 50%; 2. Better processing quality: the welding seam is smooth and even, and the protrusion is very small, without the need for polishing after welding; 3. Easier operation: The handheld head adopts ergonomic design, which is convenient to hold, light and easy to operate; 4. Abundant processing methods: pulse spot welding, continuous welding, quasi-continuous welding, etc. can be used according to processing needs; 5. Very low usage cost: ultra-high elector-optical conversion efficiency, saving a lot of electricity expenses for enterprises;
