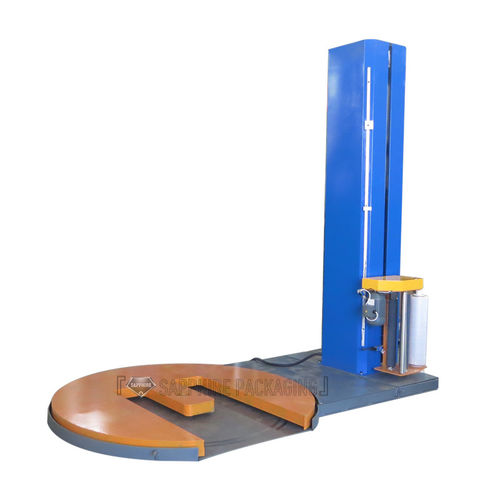

Turntable stretch wrapping machine TP1650F-Msemi-automaticfor building materialsfor paper
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- semi-automatic
- Product applications
- for building materials, for paper, for the food and beverage industry, for chemicals, for ceramics, food, for glass, for sheet metal, electronic equipment
- Other characteristics
- stretch film
- Height
2,280 mm
(90 in)- Width
1,650 mm
(65 in)- Length
2,545 mm
(100 in)- Machine weight
400 kg
(881.85 lb)- Maximum wrapping height
Min.: 800 mm
(31.5 in)Max.: 1,800 mm
(70.87 in)- Maximum pallet weight
2,000 kg
(4,409.25 lb)- Table diameter
1,650 mm
(64.96 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 12 rpm
(75 rad.min-1)- Voltage
221 V
- Power
0.37 kW, 0.4 kW, 0.75 kW
(0.5 hp, 0.54 hp, 1.02 hp)- Capacity
Min.: 20 p/h
Max.: 40 p/h
Description
The wrapping machine of TP series is suitable for lot cargo transportation in shipping container and bulk material pallet wrapping. The wrapping machine are widely used in industry of glass products, metal, electronics, paper making, ceramics, chemical, Food, drink, and building material etc. It can improve efficiency and reduce the wastage in transportation. The wrapping machine will provide advantages including dust proof, water proof and packing cost saving. It is the best choice to upgrade the product packing level.
Specifications
Main parts: 1 PLC programmable logic control, 3 inverters, 3 Speed reduction motors
