Capacitance tester S600

loopinsulation resistancecable

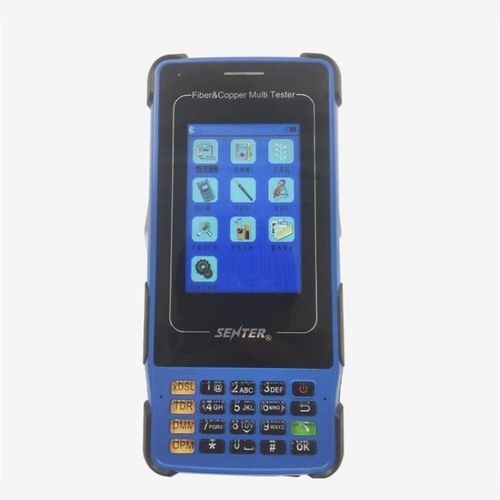

S600 is a multi-functional tester which combines the functions of fiber tester and copper tester. With 1 machine, the operators can solve all the telecom testings tasks. S600 supports ADSL/VDSL/VDSL2 test( 35b VDSL optional), DMM function, TDR-4KM (8km,16km optional), Optical Power Meter, VFL, Cable Tracing, Check Line Sequence, Landline Telephone. , 320*480 3.5 inch LCD 2, Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2 (30a, 35b profile is optional) 3, Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance) 4, Support VLAN, Vectoring, Compliant with all known DSLAMs 5, Supports Modem emulation and simulating login to Interne 6, Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test) 7. Rechargeable Li-ion Battery 8. Support optical power meter, VFL function 9. Support cable tracing, check line sequence, landline telephone function 10. Support cable fault locator (TDR) function
