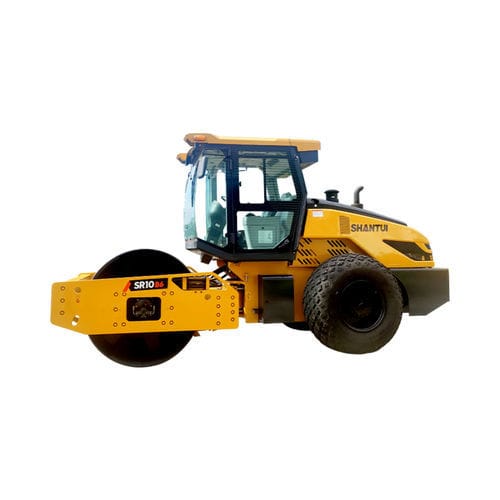

Single-cylinder road roller SR10-B6

Configuration selling point The Weichai WP4 engine for the roller developed by the Group matches well with dual-drive traveling and vibration hydraulic systems for high efficiency, strong climbing ability and high excitation force; the steel drum is of three-in-one design for good compaction effect; Ease of maintenance and operation comfort The split-type large space enclosed cab of new appearance without A-pillar guarantees comfortable operation and wide vision; the rotational molded large fuel tank extends the work duration; the fuel filter element, hydraulic filter element, oil drain port and water outlet are led outward, the filter elements are centrally arranged, and the hood has an opening height for easy maintenance; Adaptability to diverse working conditions It is suitable for the compaction of the base course, sub-base course and filling of various materials; it can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions External dimensions(mm) - 5890*2305*3160 Engine brand - Weichai Front and rear load distribution - 6000/4500 Vibration frequency low/high(Hz) - 30/36 Minimum turning radius(mm) - 6400 Excitation force(kN) - 270/180 Amplitude(mm) - 2.0/1.0 Gradeability - 0.45 Speed(km/h) - 0-5.5，0-10 Emissions (Indicated as per China standards) - Eu stage II
