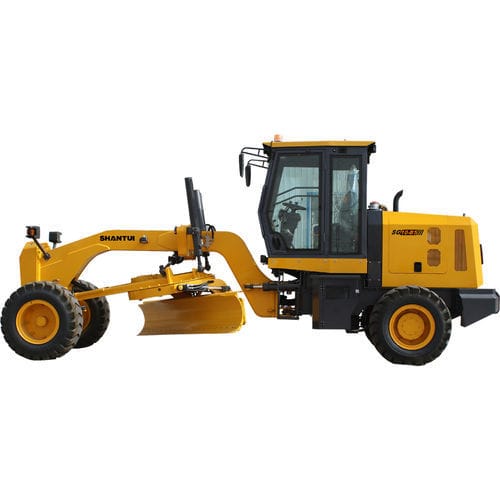

Construction motor grader SG10-B5

Configuration selling point With its high-precision slewing bearing, this machine enables smooth rotation. The traction frame and main frame are meticulously engineered with superior strength to ensure a high safety coefficient. Ease of maintenance and operation comfort Featuring a well-sealed, dust-proof, and low-noise cab, this machine exhibits a spacious interior and a wide field of view, allowing for easy observation of the blade condition at both ends and reducing labor intensity. The centralized layout of filter elements facilitates convenient maintenance. Adaptability to diverse working conditions Designed to excel in diverse work conditions, including pavement leveling, ice and snow removal, and hard soil loosening, this machine has a small turning radius and flexible steering and is capable to meet construction demands within limited space. Engine power(kW) - 74 Overall weight(T) - 6.3 Blade width(mm) - 3050 External dimensions(mm) - 6500x2050x2960 Engine model - 4BTA3.9-C100-II Fuel tank capacity(L) - 100 Hydraulic oil tank capacity(L) - 92 Maximum traction(kN) - 36 Maximum forward speed(km/h) - 40 Maximum reverse speed(km/h) - 30 Blade cutting angle(°) - 33~85 Emissions(Indicated as per international standards) - Eu stage II
