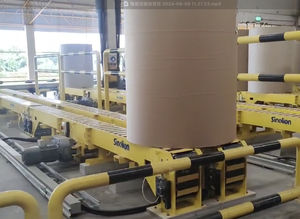

Horizontal wrapping machine

automaticfor paper rolls

Radial wrapper parts 1. Gear and rack driving device 2. Precise straight railway 3. Steel frame and powder coating 4. Whole set of pneumatic control system, user connect to the stop valve inlet. 5. The necessary control box, all the proximity switch and photo-eye frame. Auto hot melt glue spray device, auto film press device, auto film cut device, auto film sticking device. Iv. Weighing and printing system: Automatic dynamic load weighing, display weighing content, including sensors, weighing meter and accessories. High sensitivity, good stability, safe and reliable; Display can count, can accumulate, store. Monitor industrial control research hua Toledo (changzhou factory) Weighing module CW2 dynamic load module Tolido (changzhou factory) Precision according to the national three standards, electronic measurement accuracy ≤ 0.1% Bearing range within 5 tons; Minimum resolution: 0.5Kg. V. ID inkjet printer: Large character ink printer, 1630 of the nozzle, Air drive system ADS, Markem imaje 4020,0.37kW Use air source as power, 1 set of compressed air conditioning system, air source pressure 0.3kg Consumables: ordinary ink; 1. One set of Manipulator with nozzle moving up and down (Sinolion company) can spray code on the end of paper roll. Print specifications will be determined.
