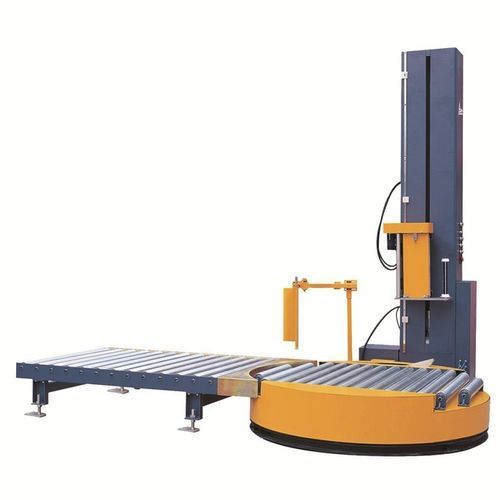

Turntable wrapping machine T2000FZ-PL
automaticpalletstretch film

Turntable wrapping machine - T2000FZ-PL  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film
Turntable wrapping machine - T2000FZ-PL  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film
Turntable wrapping machine - T2000FZ-PL  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film - image - 2
Turntable wrapping machine - T2000FZ-PL  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film - image - 3
Add to favorites
Compare this product


Characteristics

Type
turntable
Operating mode
automatic
Product applications
pallet
Other characteristics
stretch film
Maximum wrapping height

2,400 mm
(94.49 in)

Maximum pallet length

Min.: 500 mm
(19.69 in)

Max.: 1,200 mm
(47.24 in)

Maximum pallet width

Min.: 500 mm
(19.69 in)

Max.: 1,200 mm
(47.24 in)

Maximum pallet weight

1,500 kg
(3,306.93 lb)

Table diameter

2,000 mm
(78.74 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 15 rpm
(94 rad.min-1)

Voltage

380 V

Power

2 kW
(2.72 hp)

Capacity

Min.: 20 p/h

Max.: 40 p/h

Description

Automatic Pallet Wrapping Machine--T1800FZ-PL full automatic Pre-Stretch Wrapping Machine --Professional film packing machine. This packaging machine has been used in various packaging areas widely. Pallet packaging machine is used to wrap Stretch Film around a loaded pallet. stretch film provides protection while the products are being transported& stored. Stretch wrapper is widely used in chemical industry, electronic industry, home appliances, foodstuff etc. Wrapping material • Stretch wrapping film: LLDPE Stretch film Core size: 3’’ • Film width: 500mm • Diameter: Max. 240mm • Thickness: 20-35μm Film clamp& cutting unit • When stretch wrapping finish, the film will be cut and clamped automatically. • When the film tail is released from the clamp, the air shooter will blow the film tail up, then the film tail will be wrapped by stretch film and keep it tightly with the pallet to ensure no film tail produced. • Film hot melt cutting adopts electrical heating wire to cut the film. • After film being cut, the hot sealer will seal the film tail automatically to ensure no film tail come out.
