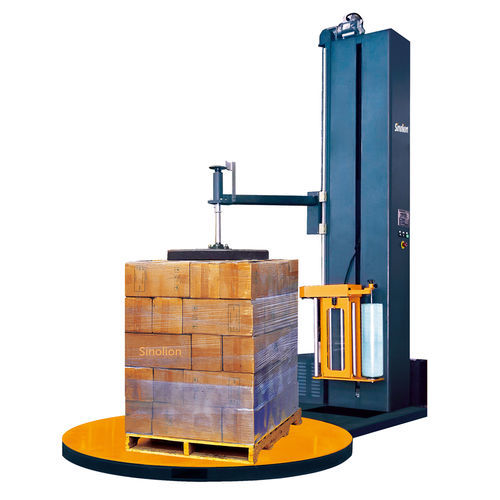

Turntable wrapping machine T1650F-CSsemi-automaticpalletstretch film
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- semi-automatic
- Product applications
- pallet
- Other characteristics
- stretch film
- Height
2,860 mm
(113 in)- Width
1,650 mm
(65 in)- Length
2,745 mm
(108 in)- Machine weight
600 kg
(1,322.77 lb)- Maximum wrapping height
1,800 mm, 2,400 mm, 2,800 mm
(70.87 in, 94.49 in, 110.24 in)- Maximum pallet length
Max.: 1,200 mm
(47.24 in)Min.: 500 mm
(19.69 in)- Maximum pallet width
Max.: 1,200 mm
(47.24 in)Min.: 500 mm
(19.69 in)- Maximum pallet weight
2,000 kg
(4,409.25 lb)- Table diameter
1,650 mm
(64.96 in)- Rotational speed
Max.: 12 rpm
(75 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Voltage
220 V
- Power
0.35 kW, 0.37 kW, 0.75 kW
(0.48 hp, 0.5 hp, 1.02 hp)- Capacity
Max.: 40 p/h
Min.: 20 p/h
Description
Turntable Stretch film Wrapping machine-T1650F-CS is the semi-auto pre-stretch wrapper and LLEPE film packaging machine. The film carriage is installed in the front of the mast, which is suitable for classic design. The top platen device can press the product to avoid dropping.
