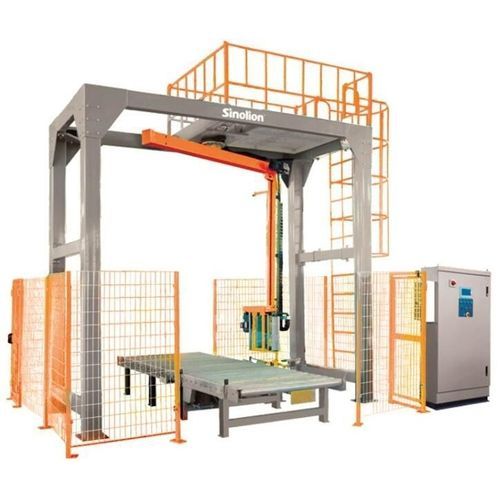

Rotary arm wrapping machine R1800FZ-PL

fully-automaticfor the food and beverage industrypallet

Automatic rotary Stretch Film wrapper R1800FZ-PL is a fully automatic stretch wrap system that can operate in-line with other automatic equipment. It is ideal for tall stacked loads that are unstable or too heavy to rotate. It is mainly applied in the wrapping of beverage, food and other industries. It is easy to set up and use. Pre-stretch carriage will save the films and protect the environment. 1. Proven technology with stable using. We are the first manufacturer of rotary arm wrappers in China and have accumulated detailed and advanced method to keep the machine working in normal and function well with other machines. 2. The Max. speed of arm rotating is 35 rpm. We are the only supplier who can do this and do better in this in China. 3. Good wrapping effectiveness We use good film clamp& cuting unit with Europe technology. It can give you a better film sealing and cutting result. Film Carriage • Powered pre-stretch system up to 300% to min film consumption(Prestretch ratio can be specially made according your requirements.) • Film delivery variable speed by separate AC Drive Motor • Film dancer-bar with variable speed output • Rotating Power slip ring provide power required for carriage drive on rotary arm. Auto film cut&clamp unit • Pneumatic clamp the film tail after wrapping • Hot wire film cut • Seal film against pallet while cutting film
