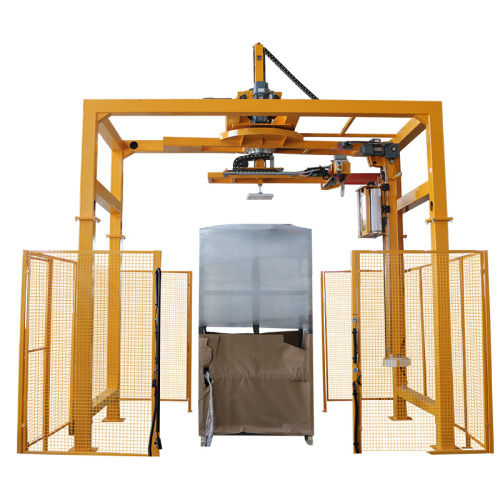

Vertical wrapping machine FM-1800automaticfor the food and beverage industryfor chemical products
Add to favorites
Compare this product
Characteristics
- Type
- vertical
- Operating mode
- automatic
- Product applications
- pallet, for the food and beverage industry, for chemical products, for medical packaging, for the construction industry
- Maximum wrapping height
1,800 mm
(70.87 in)- Maximum pallet length
1,200 mm
(47.24 in)- Maximum pallet width
1,200 mm
(47.24 in)- Voltage
380 V
- Power
0.4 kW, 1.1 kW
(0.54 hp, 1.5 hp)
Description
• 50Hz, 3 phase
• Top sheet length: adjustable according to the pallet (normally 1200mm+2*300mm)
• Sheet delivery speed: 9.5m/min
• Film feeding frame moving speed: 4.5m/min
• Sheet cutting: knife blade, pneumatic driven
• Film roll inner diameter: 76.2mm
• Top-sheet length: 1100-1800mm (max) adjustable
• Film roll is placed upper ground, auto film cutting;
