Orbital wrapping machine S1800
automaticpalletstretch film

Orbital wrapping machine - S1800  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film
Orbital wrapping machine - S1800  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film
Orbital wrapping machine - S1800  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film - image - 2
Orbital wrapping machine - S1800  - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / stretch film - image - 3
Add to favorites
Compare this product


Characteristics

Type
orbital
Operating mode
automatic
Product applications
pallet
Other characteristics
stretch film
Height

2,600 mm
(102 in)

Width

1,650 mm
(65 in)

Length

2,600 mm
(102 in)

Machine weight

1,500 kg
(3,306.93 lb)

Maximum wrapping height

1,200 mm
(47.24 in)

Maximum pallet length

1,200 mm
(47.24 in)

Maximum pallet width

100 mm
(3.94 in)

Table diameter

1,800 mm
(70.87 in)

Rotational speed

Min.: 20 rpm
(126 rad.min-1)

Max.: 30 rpm
(188 rad.min-1)

Power

2.2 kW
(2.99 hp)

Description

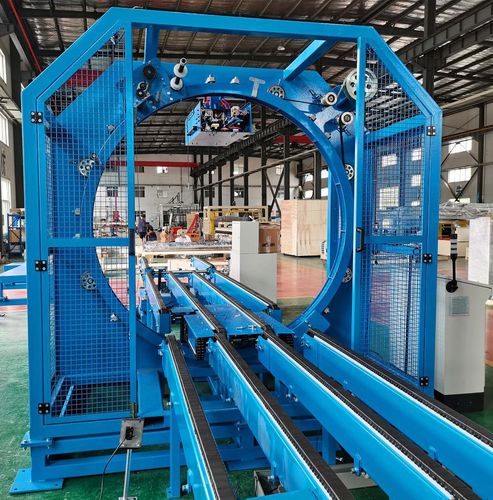

Orbital Stretch Wrapping Machine S1800 is used for wrapping or strapping pallet or long products such as plastic material, pipes, etc. The principle is that the packaging material through the rotating arm device around the average forward rotation of the goods, at the same time by Stretch Film carriage to adjust the tension of packaging film, and realize fastening the whole packing of the goods. The rules of the surfaces will form a spiral packaging.Easy operation and maintenance, preventing dust and protecting the surface of the products.
