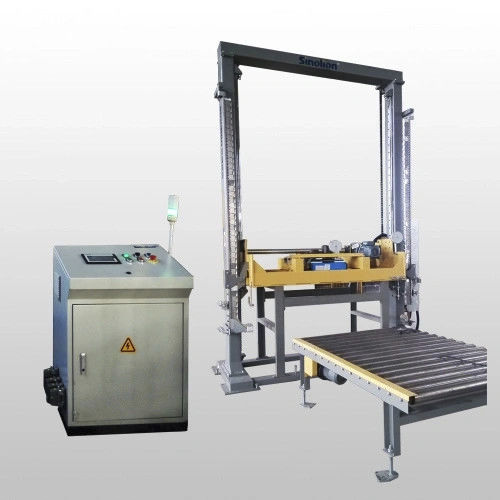

Automatic strapping machine SKV-1220

pallet380V three-phasevertical

1. Vertical Strapping Machine SKV1220 is specially used to strap the pallets. The strap head is made by TITAN, Germany. The PLC is from SIEMENS, which ensure the advanced property and reliable operation. This machine is used with the pallet wrapping and conveying line automatically in no need of manualoperation. 2.1 Strapping specification: Size of pallet: 1400mmx1300mmx2000mm 2.2 Requirement for the placing of the pallets. The pallet is laid on the Conveyor with the center line parallel with the ground surface. 2.3 Strapping head: (TITAN Germany) Feeding speed of the belt: 2.5-4.5m/s Tension force, infinite regulation: 200-2500N Hot melting sealing, length of sealing head: 27mm Material of belt: PET Width of belt: 9-16mm (Recommend 12mm ) Thickness of belt: 0.6-0.8mm 2.4 Strapping efficiency: 15 seconds/strapping 2.5 Power: 380V/3P/50Hz Control Voltage: 24V. Power:3Kw 2.6 Operation table size: Length 700mm, Width: 500mm, Height:1000mm. 2.7 Compressed air: Consumption: 1 m3/h Pressure: 0.5-0.7 MPa Dew point: +2-+10℃ (7bar: +2~+10℃) 3.Features: Automatic sensing load height, horizontal strap for loads in different height 4 Straps for every 15 pallets/hour, suit for any Packing Line Seamless connection conveyor, fully automatic unmanned operation Automatic sensing load height, horizontal strap for loads in different height Simple and reliable design, stable working Automatic feeding, welding, cutting strap, make a flat and beautiful weld Side Motor drive moves on the two parallel rails, which keeps right strap position. One automatic wear sword slot can cross the center of Turntable.Looking for ideal Pallet Strapping Machine Manufacturer & supplier ? We have a
