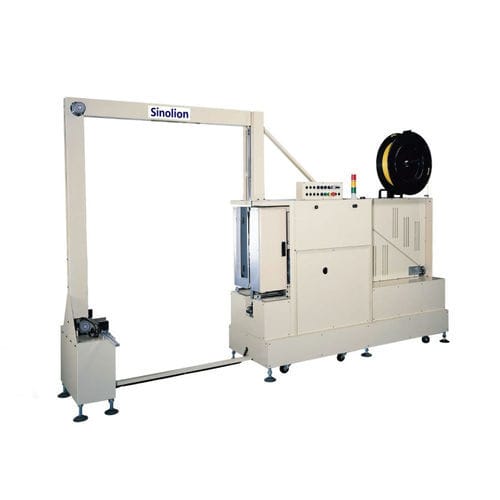

Vertical strapping machine SKVS-1220+T1650F
automaticpalletfor polypropylene straps

Vertical strapping machine - SKVS-1220+T1650F - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / for polypropylene straps
Vertical strapping machine - SKVS-1220+T1650F - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / for polypropylene straps
Vertical strapping machine - SKVS-1220+T1650F - SHANDONG  SINOLION  MACHINERY  CORP  LTD - automatic / pallet / for polypropylene straps - image - 2
Add to favorites
Compare this product


Characteristics

Type
automatic
Product applications
pallet
Type of strap
for polypropylene straps
Power supply
380V three-phase
Other characteristics
vertical
Overall height

2,823 mm
(111.1 in)

Overall width

660 mm
(26 in)

Package width

800 mm
(31.5 in)

Package length

1,200 mm
(47.24 in)

Package height

140 mm, 1,700 mm
(5.51 in, 66.93 in)

Strap width

12 mm
(0.472 in)

Strip thickness

0.6 mm
(0.02 in)

Clamping tension

Min.: 15 kg
(33.07 lb)

Max.: 90 kg
(198.42 lb)

Description

• PLC control • Main machine stroke is 600mm • Vertical strapping with movable track • Short feeding system • Handshake interlock. • Empty strap sensor. 1. The products size could not be less 20mm than the pallet size at the strap side. 2. The height of the loads should be higher than 700mm. 3. The distance between loads and Strapping Machine should be less than 580mm.
