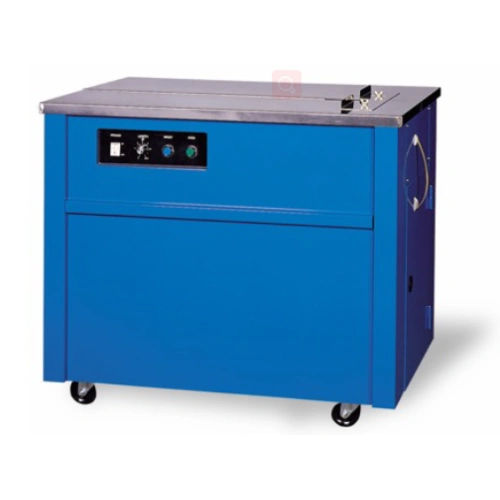

Semi-automatic strapping machine S-313Dcartonpalletfor polypropylene straps
Add to favorites
Compare this product
Characteristics
- Type
- semi-automatic
- Product applications
- carton, pallet
- Type of strap
- for polypropylene straps
- Power supply
- 380V three-phase
- Other characteristics
- vertical
- Overall height
1,850 mm
(72.8 in)- Overall width
2,000 mm
(78.7 in)- Package width
800 mm
(31.5 in)- Package length
1,200 mm
(47.24 in)- Package height
140 mm, 1,700 mm
(5.51 in, 66.93 in)- Strap width
12 mm
(0.472 in)- Strip thickness
0.6 mm
(0.02 in)- Clamping tension
Max.: 90 kg
(198.42 lb)Min.: 15 kg
(33.07 lb)
Description
PLC control
Main machine stroke is 600mm
Vertical strapping with movable track
Short feeding system
Handshake interlock.
Empty strap sensor.
Note:
1. The products size could not be less 20mm than the pallet size at the strap side.
2. The height of the loads should be higher than 700mm.
3. The distance between loads and Strapping Machine should be less than 580mm.
