Slat conveyor

horizontalVloading

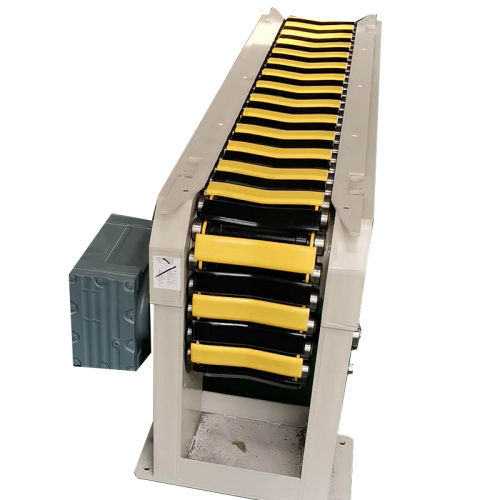

The V-slat Conveyor and electrical Turntable is mainly used for transferring the reel type products. It can meet the high production capacity and heavy load. • The conveyor slat is made in V-Shaped, Angle: 170°. • Loading capacity of slat conveyor: 3000 kg/m. • Chain rollers installed with bearing inside, No oil and No contamination on paper rolls. • Heavy duty steel structures, modular design. • Equipped with vertical shaft driving gear reducer. • Tensioner adjusting device & lubrication can be operated on floor level, easy for maintenance. • Equipped with automatic control components and mounting bracket. • Slat conveyor installed in floor level, convenient for the production operation. • Equipped with cover plates at the head and end of transmission units easy to dismantle. 2. Electrical turntable The turntable rotates with an external ring gear transmission mechanism, and the drive motor is frequency-controlled, with braking, and accurate positioning. The turntable is supported by a large outer ring gear slewing bearing for stable operation and durability and equipped with Electric turntable maintenance machine pit cover plate.
