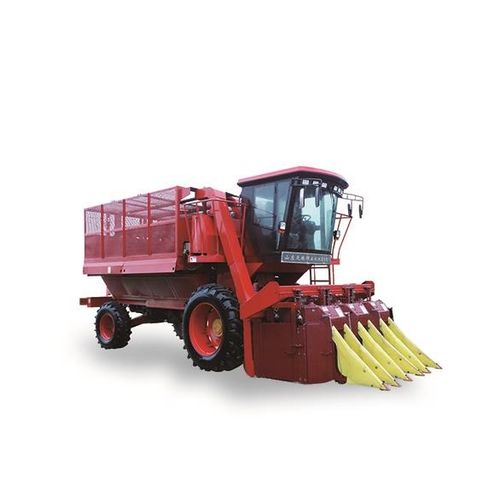

A genious design made in China, best choice for small and medium sized cotton field.
1.High collecting rate, low fiber damage, low impurities rate, complete, maintain natural shape.
2.High power turbocharged engine, new type wind dust removal system, strong dynamic, reliable and durable, energy efficient.
3.All imported hydraulic parts equipped, reliable performance, smooth operation.
4.Full hydraulic stepless speed control, easy to operate,low failure rate。
5.Full hydraulic stepless speed control, easy to operate.
6.Large capacity cotton box, without frequent unloading cotton, improve work efficiency, improve work efficiency.
7.Hydraulic automatic lifting technique for air pipe of cotton conveyor, convenient and efficient.
8.Closed cab, comfortable working environment, real-time monitoring of parameters, simple and intelligent operation.
Engine
Dongfeng Commins QSC8.3-C240-3, 179KW, 2200rpm
Picking head specification
PRO-16,PRO-12(Optional)
Picking head Quantity
3
Available line spac
66+10、68+8
Whole voltage
24V
Fuel tank volum
400L
Lubricating grease volume
300L
Water tank volum
1150L
Cotton box volume
34 m3
Working efficiency
100~160 Mu/day
Transmission power input
Static hydraulic
Traveling speed
Grade 1 (first pick): 0-5.5km/h
Grade 2 (second pick) 0-6.7 Km╱h
Grade 3 (transportation) 0-21 Km╱h
Efficiency:
≥93%
Impurity rate
≤11%
Collision falling rate
≤2.5%
Added value of seedcotton moisture rate
≤3%
Turnaround mode
Hydraulic turning
Brake mode
Double pedal, mechanical operation, hydraulic brake
