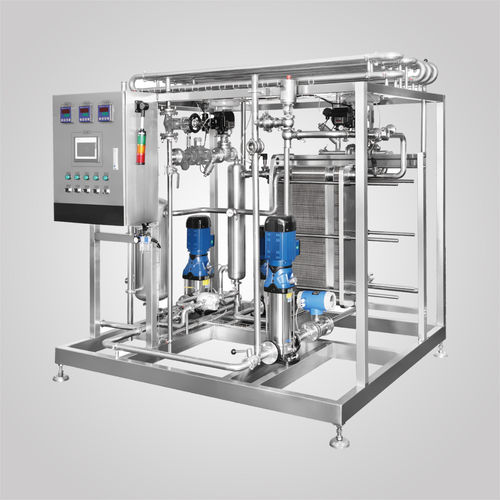

Beer pasteurizer

automaticplate heat exchanger

Flash Pasteurizer is used in a brewery to pasteurize the beer and keep the beer taste as possible. The whole system is automatic deigned by exact temperature and flow control. Customized process requirements like heating, sterilization, heat preservation, cooling, etc. Adopt Germany JUMO PID temperature controller, the accuracy can reach ±0.1℃ Siemens PLC+HMI control, data is clearly visible and traceable International brands such as Spirax Sarco steam parts, Grundfos pump, IFM or E+H flow meter CIP cleaning system to ensure hygiene and safety Specification: ♦ Function:Pasteurize Beer ♦ Capacity: 5t/h ♦ Material:SUS304 ♦ Steam Pressure: ≥2.5bar ♦ Ice water flow rate: 15t/h(-2~1℃) ♦ Compressed air pressure:≥6bar ♦ Steam consumption:60kg/h ♦ Ice water energy consumption: 30000kcal/h ♦ Power:6.6KW ♦ 50L hot water tank ♦ Three stages SUS304 plate heat exchanger ♦ SIMENS PLC and HMI controller ♦ Complete valves, fittings and all parts ♦ Technical process: 1-4℃→72℃ (hold 30sec)→2-4℃(Can be Customized) ♦ Dimension: 1800×2000×2000mm
