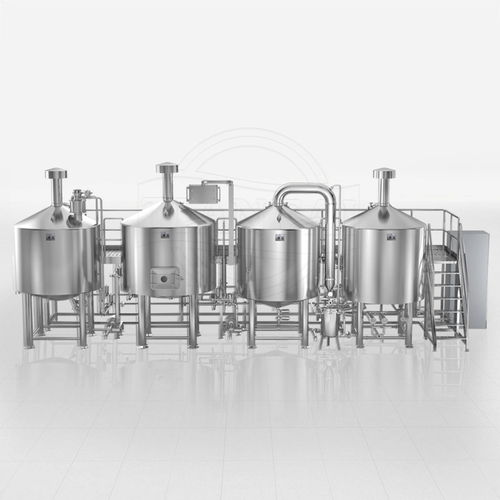

Brewery System for industrial applications

verticalmicro

The batch output capacity of a 2000L craft brewery is sufficient to supply multiple retail outlets or regional distribution networks, allowing for the broader promotion of your craft beer brand. We advise a PLC-controlled four-vessel brewhouse to enhance brewing efficiency and facilitate multi-batch brewing. We also offer a 3-vessel brewhouse combination for customers with limited space. Multiple fermentation tanks can be matched according to brewing and sales plans, which are suitable for producing craft beer types. Process characteristics Ingredients handling (optional) method: dry milling Heating method: electric / steam / direct fire Heating with steam: the temperature can be precisely regulated within the range of 45-76°C at a rate of 1-1.2°C/min and within the range of 52-100°C at a rate of 1.2-1.5°C/min. Mashing: infusion mashing / decoction processes Lautering: Chollima system Boiling: Standard atmospheric boiling / low-pressure boiling / internal calandria with the heatwave Removal of the coarse break: whirlpool tank Wort Cooling: one stage cooling Fermentation process: closed pressure fermentation Fermenter cooling method: ethylene glycol or alcohol via dimple jackets The cooling speed is 0.8-1°C/hour for 5°C-18°C and 0.05-0.2°C/hour for 0°C-5°C. The cooling parameters can be set to achieve precise control of cooling speed at different stages. The whole cooling system utilizes a 33% hybrid refrigerant, which is a -5°C ethylene glycol. This refrigerant provides efficient cooling, while also maintaining a low operating temperature. Glycol water supply temperature: -3℃~-5℃ Glycol water supply pressure: 3-4 bar
