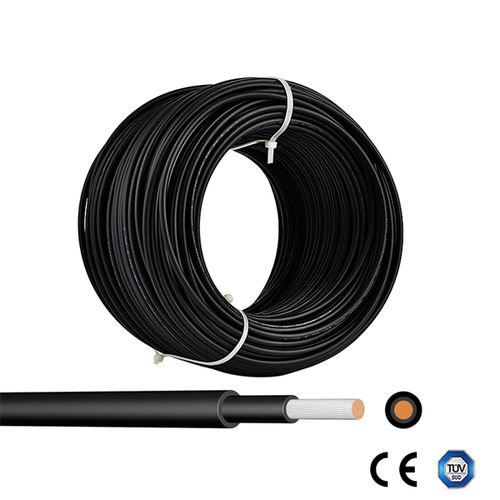

Power cable PV1-FDINinsulatedcopper
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- DIN
- Protection
- insulated
- Core material
- copper
- Applications
- for solar installations
- Number of wire
- 1 wire
- Material of the insulation
- polyolefin
- Norms
- IEC
- Nominal voltage
600 V, 1,000 V, 1,800 V
- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Cross-section
Max.: 120 mm²
(0.19 in²)Min.: 1.5 mm²
(0 in²)
Description
Conductor: Tinned fine Re copper strands, according to VDE0295/IEC60228.Class5
Insulation: Polyolefin Copolymer electron-beam cross-linked
Sheath Jacket: Polyolefin Copolymer electron-beam cross-linked
Nominal Voltage: Uo/U=600V/1000VAC,1000/1800VDC
Test voltage: 6500V,50Hz,5Min
Temperature Rating: -40oC-90oC, More Than 25 Years (TUV)
Smoke Emission: IEC61034,EN 50268-2
Low Fire Load: DIN 51 900
Certification: TUV 2PFG 1169/08.2007 PV1-F
