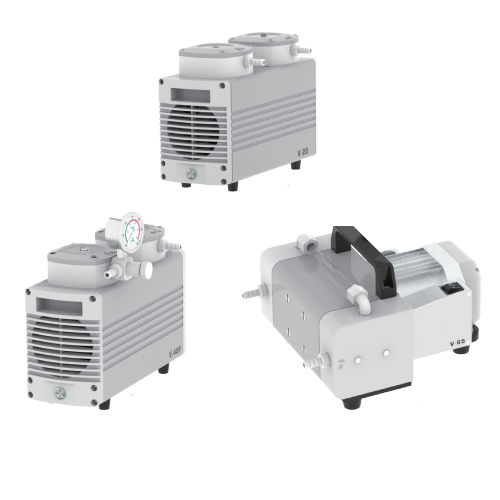

Diaphragm vacuum pump RV series
lubricatedtwo-stagegas

diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
lubricated
Number of stages
two-stage
Applications
gas
Other characteristics
low-noise level, anti-corrosion, low-vibration
Ultimate vacuum

8 mbar
(0.12 psi)

Flow rate

0.02 l/min
(0.01 us gal/min)

Power

1 kW
(1.36 hp)

Operating temperature

Min.: 5 °C
(41 °F)

Max.: 35 °C
(95 °F)

Description

V series diaphragm vacuum pump anticorrosion is a medium for the gas two-stage pump,all with the gas contact part, are PTFE (PTFE) material, corrosion resistance, wide range of applications, can completely replace the water circulation pump, Suitable for chemical,pharmaceutical, petrochemical and other industries on the treatment of corrosive gases,such as filtration, vacuum distillation, rotary evaporation, vacuum concentration, centrifugal concentration, solid phase extraction and so on. Features Anti-strong chemical corrosion ● Anticorrosion vacuum pump using a special diaphragm (diaphragm surface composite PTFE coating) and pump head design, including all joints and piping to ensure that the contact with the gas part of the imported PTFE material, so Resistant to most of the corrosive gas; at the same time electrical switches and shells are also anti-corrosion treatment, especially for the transmission mechanism and the circuit part of the use of corrosion-resistant materials to form a confined space, and the external environment completely isolated, so that the vacuum pump is not only corrosive media, But also perfect for corrosive environment, completely solve the vacuum pump chemical corrosion problems.
