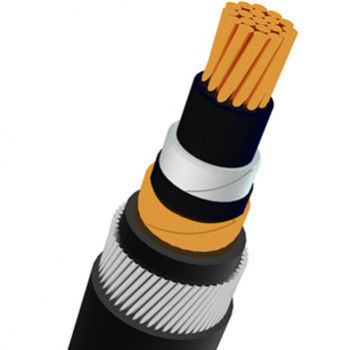

Power cable insulatedshieldedstranded
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated, shielded
- Configuration
- stranded
- Core material
- copper, aluminum
- Applications
- underground
- Material of the insulation
- polyester
- Norms
- IEC
- Nominal voltage
4 kV, 6 kV, 7 kV
- Temperature
90 °C
(194 °F)- Cross-section
Max.: 1,000 mm²
(1.55 in²)Min.: 25 mm²
(0.04 in²)
Description
Application：
This cable is used for urban networks. It can be installed aerially, in conduit, on open trays and in underground ducts
Operating temperature：
90℃
Voltage rating：
3.6/6(7.2)KV
Construction：
Conductor: Compact round stranded copper or aluminium
Conductor Shield: Semi-conducting tape and /or semi-conducting cross-linked polyethylene
Insulation: Cross-linked polyethylene
Insulation Shield: Semi-conducting cross-linked polyethylene
Shield: Copper tape shield
Filler: Polypropylene (Nonhygroscopic material)
Binding Tape: Polyester and/or non-woven tape (Optional: water blocking tape)
Bedding: Black polyethylene (Optional: polyvinyl chloride)
Armour: Aluminium wire armoured
Sheath: Black polyvinylene (ST7) (Optional: polyvinyl chloride)
Insulation colour:
Natural
Followed standard:
IEC60502-2,IEC60228
