Flame-retardant electrical cable powercopperyellow
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- flame-retardant
- Core material
- copper
- Other characteristics
- yellow
- Nominal voltage
600 V, 1,000 V
- Temperature
90 °C
(194 °F)- Cross-section
Max.: 300 mm²
(0.47 in²)Min.: 1.5 mm²
(0 in²)
Description

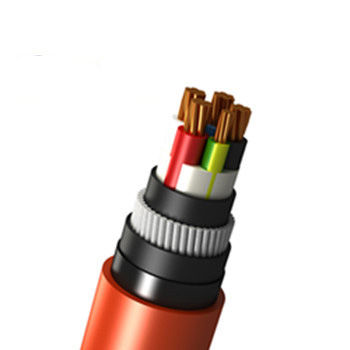

AS/NZS 600/1000V FRT Multicore Armoured Cable
Application：
This cable is primarily used for main power supply. It can be installed in cable ducts, in cable trunking,on cable trays and on cable ladders and in switchgears.
Operating temperature：
90℃
Voltage rating：
600/1000V
Construction：
CU/XLPE/LSZH/SWA/LSZH,Plain annealed strand copper conductor,LSZH Bedding,Galvanized steel wire armoured,LSZH
Outer sheath
Core identification：
2C+E:Red,Black,&Green/Yellow, 3C+E:Red,White,Blue &Green/Yellow, 4C+E:Red,White,Blue,Black & Green/Yellow
Outer sheath color：
Black or as customer order
Followed standard:
AS/NZS5000.1,AS/NZS1660.5,IEC60332-3,IEC60754,IEC61034
