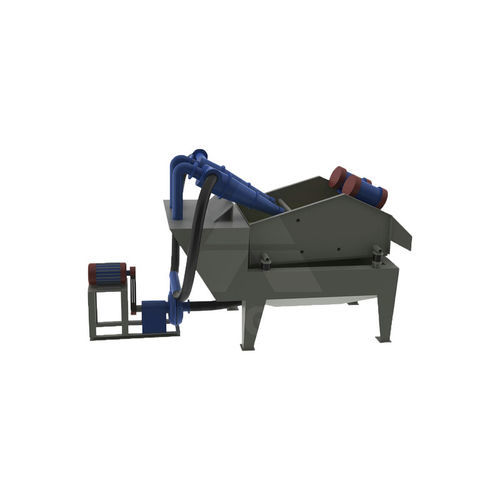

Water recycling unit LZ1 series

washing

Working Principle 1.Structure: The system is composed of the motor,pump.cyclone,vibrating,pool recycling box. 2.Working procedure: The compound of sand and water is transported to cyclone, the sand that centrifugal classification concentrate is provided to the vibrating screen by the heavy grit, and sand with water are effectively separated after the vibrating screen dehydration. Through recycling Product Description Structure: The system is composed of the motor,pump.cyclone,vibrating,pool recycling box. Working procedure: The compound of sand and water is transported to cyclone, the sand that centrifugal classification concentrate is provided to the vibrating screen by the heavy grit, and sand with water are effectively separated after the vibrating screen dehydration. Through recycling box, fine sand and mud and so on are transported again to the pool, and then they are exhausted from the exit when the liquid surface of pool is too high. The material weight concentration recovered by the vibrating screen is 70%-80%. Adjusting fineness module may come true by changing the pump rotation rate,changing pulp concentration, adjusting the flooding water yield, or changing the grit mouth, and then fulfills its three functions-washing,dehydration and screening. Application Features In the traditional artificial sand wet processing technology, artificial sand wash mud,dehydration using spiral sand washer, the loss of fine sand in artificial sand can hardly control.
